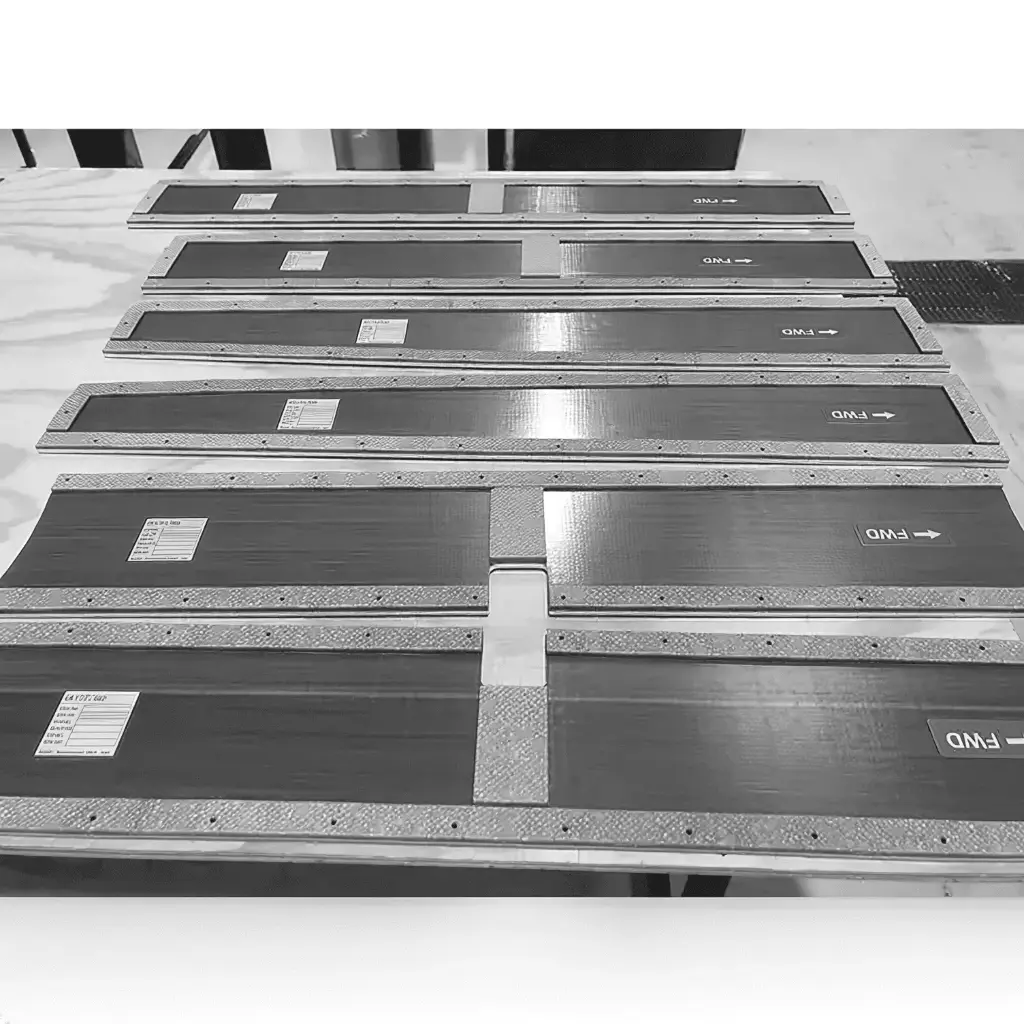

FIBRELAM 2100 GRADE 3 - NTA43654-TYPE II-8.0 (THICK 10.16MM) DIMENSION 3658 MM X 1240 MM / P/N MPL-333 / MOQ 5 SH

The FIBRELAM 2100 Grade 3 (P/N MPL-333, NTA43654 Type II-8.0, 10.16 mm thick, 3658×1240 mm) is a flight-proven structural sandwich panel engineered specifically for demanding aerospace applications, offering an exceptional strength-to-weight ratio and outstanding dimensional stability under thermal and humidity cycling. Its epoxy-resin bonded fibreglass faces over a Nomex® honeycomb core deliver excellent in-plane shear, insert shear (up to ~7 300 N), and panel shear strength (≈3 400 N) per BMS/MIL standards, while maintaining low flammability and self-extinguishing behavior. The panel is fully machinable using standard aerospace tooling and compatible with common adhesives and fastening systems, making it ideal for aircraft flooring, partitions, galley floors, bulkhead stiffeners, and structural interiors. Its robustness in corrosive, vibration-intense, and temperature-varying environments ensures long service life even in high-humidity or salt-laden atmospheres.
